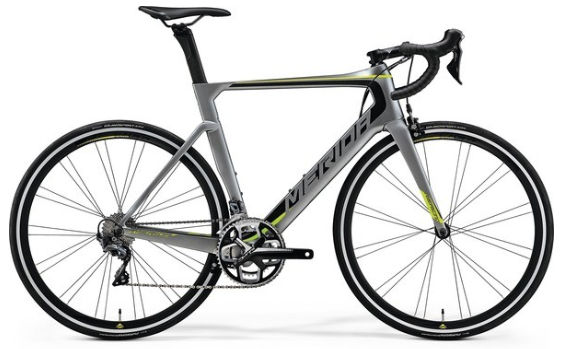

2017 Merida Reacto CF2 geometry
Full frame geometry for the 2017 Merida Reacto CF2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/44 | 516 | 372 | 74.5 | 70 | 122 | 515 | 440 | 712 | 70 | 586 | 408 | 984 |
| XS/47 | 529 | 373 | 74.5 | 71 | 132 | 520 | 470 | 735 | 70 | 583 | 408 | 981 |
| S/50 | 539 | 381 | 74 | 71 | 142 | 535 | 500 | 759 | 70 | 593 | 408 | 991 |
| SM/52 | 558 | 385 | 74 | 72.5 | 162 | 545 | 520 | 782 | 66 | 591 | 408 | 990 |
| ML/54 | 575 | 390 | 73.5 | 73 | 177 | 560 | 540 | 802 | 66 | 596 | 408 | 995 |
| L/56 | 593 | 394 | 73 | 73 | 197 | 575 | 560 | 821 | 66 | 606 | 408 | 1005 |
| XL/59 | 616 | 402 | 73 | 73.5 | 217 | 590 | 590 | 848 | 66 | 615 | 408 | 1014 |
All measurements in millimetres unless marked (°) for angles.
