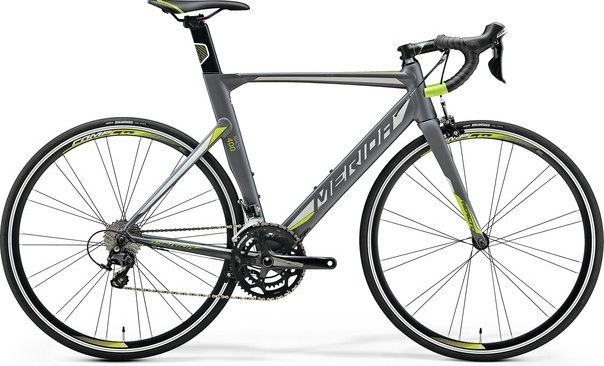

2016 Merida Reacto AL geometry
Full frame geometry for the 2016 Merida Reacto AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 373 | 74 | 71 | 120 | 518 | 470 | 745 | 61 | 577 | 405 | 974 |
| 50 | 519 | 381 | 74 | 72 | 130 | 530 | 500 | 769 | 61 | 581 | 405 | 978 |
| 52 | 532 | 393 | 74 | 73 | 140 | 545 | 520 | 784 | 61 | 587 | 405 | 984 |
| 54 | 551 | 397 | 73.5 | 73 | 160 | 560 | 540 | 803 | 61 | 597 | 405 | 994 |
| 56 | 570 | 400 | 73 | 73 | 180 | 575 | 560 | 821 | 61 | 607 | 405 | 1004 |
| 59 | 594 | 408 | 73 | 73 | 205 | 590 | 590 | 849 | 61 | 622 | 405 | 1019 |
All measurements in millimetres unless marked (°) for angles.
