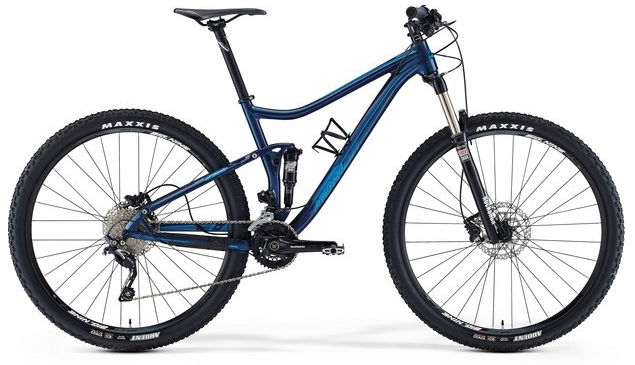

2016 Merida One-Twenty Al MKII geometry
Full frame geometry for the 2016 Merida One-Twenty Al MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 589 | 412 | 74.5 | 68 | 105 | 575 | 415 | 707 | 25 | 683 | 440 | 1122 |
| M (27.5) | 593 | 430 | 74.5 | 68 | 110 | 595 | 450 | 732 | 25 | 703 | 440 | 1142 |
| L (27.5) | 603 | 452 | 74.5 | 68 | 120 | 620 | 500 | 756 | 25 | 728 | 440 | 1167 |
| M (29) | 615 | 431 | 75 | 69 | 95 | 595 | 450 | 740 | 40 | 702 | 445 | 1144 |
| L (29) | 624 | 450 | 75 | 69 | 105 | 618 | 500 | 768 | 40 | 725 | 445 | 1167 |
| XL (29) | 633 | 471 | 75 | 69 | 115 | 642 | 551 | 796 | 40 | 749 | 445 | 1191 |
All measurements in millimetres unless marked (°) for angles.
