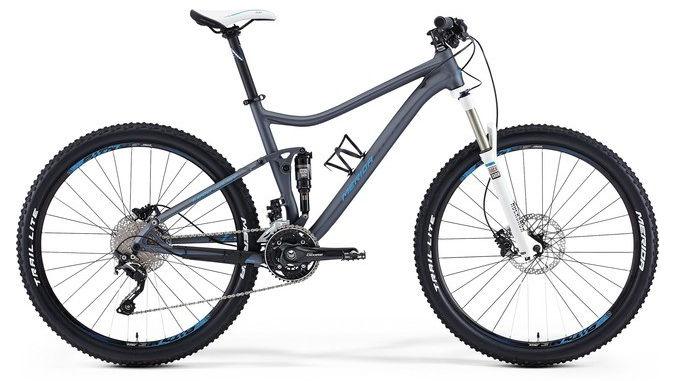

2015 Merida One Twenty 7 Juliet geometry
Full frame geometry for the 2015 Merida One Twenty 7 Juliet, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 573 | 417 | 74.5 | 68 | 100 | 575 | 415 | 705 | 25 | 681 | 440 | 1120 |
| M | 582 | 434 | 74.5 | 68 | 110 | 595 | 460 | 729 | 25 | 702 | 440 | 1141 |
| L | 591 | 456 | 74.5 | 68 | 120 | 620 | 510 | 753 | 25 | 728 | 440 | 1167 |
All measurements in millimetres unless marked (°) for angles.
