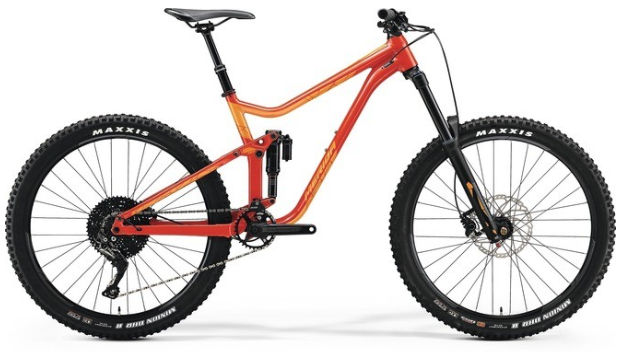

2017 Merida One Sixty Lite geometry
Full frame geometry for the 2017 Merida One Sixty Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 410 | 75 | 65.3 | 105 | 559 | 355 | 713 | 6 | 727 | 430 | 1157 |
| M | 599 | 440 | 75 | 65.3 | 110 | 591 | 430 | 734 | 6 | 759 | 430 | 1189 |
| L | 613 | 474 | 75 | 65.3 | 125 | 630 | 470 | 757 | 6 | 793 | 430 | 1223 |
| XL | 617 | 490 | 75 | 65.3 | 130 | 648 | 490 | 765 | 6 | 817 | 430 | 1247 |
All measurements in millimetres unless marked (°) for angles.
