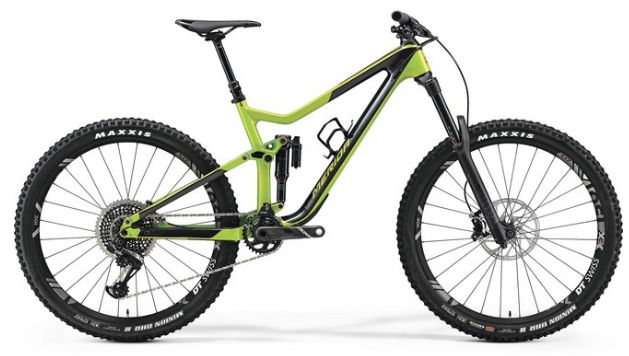

2017 Merida One-Sixty CFA geometry
Full frame geometry for the 2017 Merida One-Sixty CFA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 415 | 68.5 | 65.3 | 100 | 563 | 400 | 717 | 6 | 736 | 430 | 1166 |
| M | 601 | 445 | 68.5 | 65.3 | 110 | 597 | 430 | 736 | 6 | 771 | 430 | 1201 |
| L | 614 | 475 | 68.5 | 65.3 | 125 | 632 | 470 | 766 | 6 | 807 | 430 | 1237 |
All measurements in millimetres unless marked (°) for angles.
