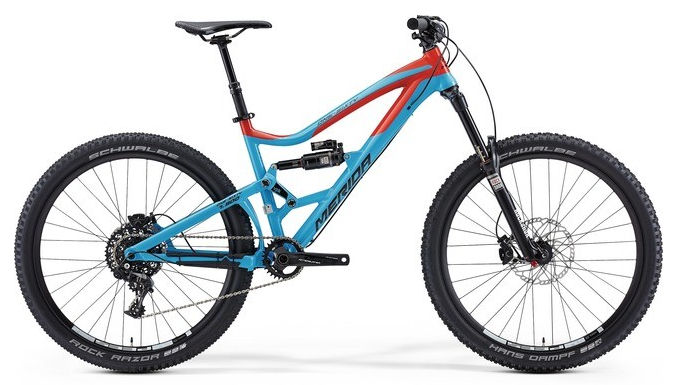

2015 Merida One Sixty 7 geometry
Full frame geometry for the 2015 Merida One Sixty 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 400 | 74 | 66 | 110 | 571 | 380 | 699 | 7 | 703 | 440 | 1143 |
| M | 606 | 430 | 74 | 66 | 120 | 604 | 432 | 707 | 7 | 737 | 440 | 1177 |
| L | 620 | 455 | 74 | 66 | 135 | 633 | 482 | 743 | 7 | 768 | 440 | 1208 |
| XL | 629 | 480 | 74 | 66 | 145 | 660 | 530 | 778 | 7 | 797 | 440 | 1237 |
All measurements in millimetres unless marked (°) for angles.
