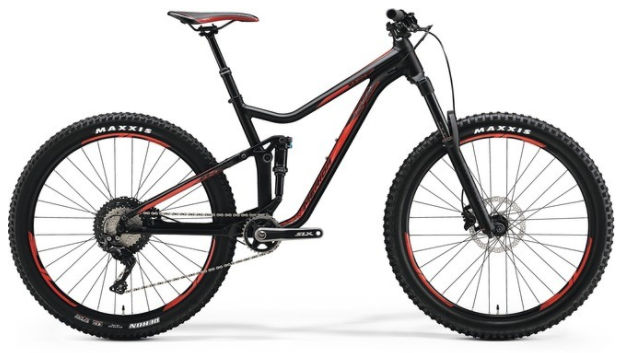

2018 Merida One Forty MKII geometry
Full frame geometry for the 2018 Merida One Forty MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 415 | 75 | 66.3 | 95 | 572 | 410 | 708 | 21 | 710 | 435 | 1144 |
| M | 601 | 435 | 75 | 66.3 | 110 | 596 | 435 | 723 | 21 | 736 | 435 | 1170 |
| L | 615 | 455 | 75 | 66.3 | 125 | 620 | 475 | 750 | 21 | 760 | 435 | 1194 |
| XL | 629 | 475 | 75 | 66.3 | 140 | 643 | 515 | 778 | 21 | 788 | 435 | 1222 |
All measurements in millimetres unless marked (°) for angles.
