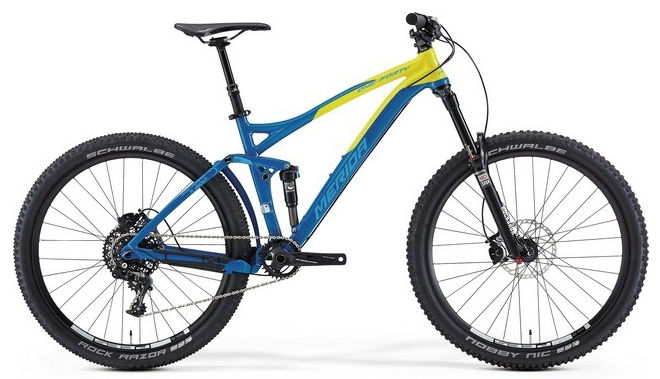

2015 Merida One Forty 7 geometry
Full frame geometry for the 2015 Merida One Forty 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 390 | 74 | 67.5 | 100 | 560 | 390 | 707 | 18 | 677 | 445 | 1121 |
| M | 601 | 423 | 74 | 67 | 110 | 595 | 440 | 748 | 18 | 713 | 445 | 1157 |
| L | 610 | 450 | 74 | 67 | 120 | 625 | 480 | 778 | 18 | 744 | 445 | 1188 |
| XL | 620 | 472 | 74 | 67 | 130 | 650 | 530 | 805 | 18 | 771 | 445 | 1215 |
All measurements in millimetres unless marked (°) for angles.
