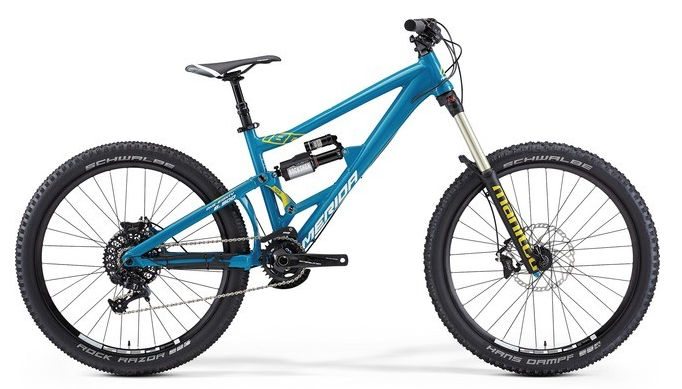

2015 Merida One Eighty 6 geometry
Full frame geometry for the 2015 Merida One Eighty 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 592 | 434 | 74 | 64.5 | 120 | 595 | 430 | 750 | 10 | 774 | 435 | 1209 |
| M | 592 | 413 | 74 | 64.5 | 120 | 575 | 400 | 728 | 10 | 751 | 435 | 1186 |
| S | 592 | 393 | 74 | 64.5 | 120 | 555 | 400 | 731 | 10 | 731 | 435 | 1166 |
All measurements in millimetres unless marked (°) for angles.
