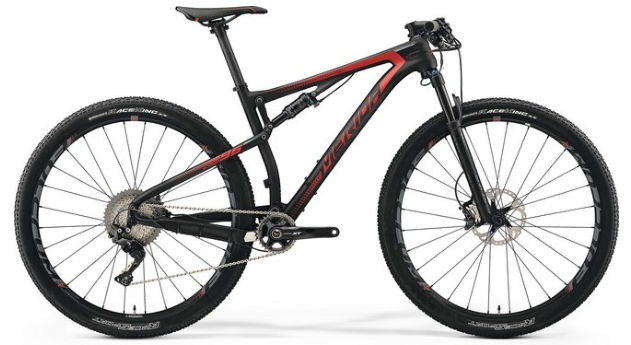

2017 Merida Ninety-Six CF4 geometry
Full frame geometry for the 2017 Merida Ninety-Six CF4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 556 | 411 | 75 | 69 | 100 | 560 | 420 | 750 | 21 | 664 | 435 | 1098 |
| M (27.5) | 570 | 431 | 75 | 69 | 115 | 585 | 460 | 752 | 21 | 689 | 435 | 1123 |
| M (29) | 589 | 429 | 74.5 | 70 | 100 | 590 | 460 | 768 | 40 | 684 | 445 | 1126 |
| L (29) | 603 | 449 | 74.5 | 70 | 115 | 615 | 510 | 773 | 40 | 709 | 445 | 1151 |
| XL (29) | 617 | 468 | 74.5 | 70 | 130 | 640 | 560 | 776 | 40 | 734 | 445 | 1176 |
All measurements in millimetres unless marked (°) for angles.
