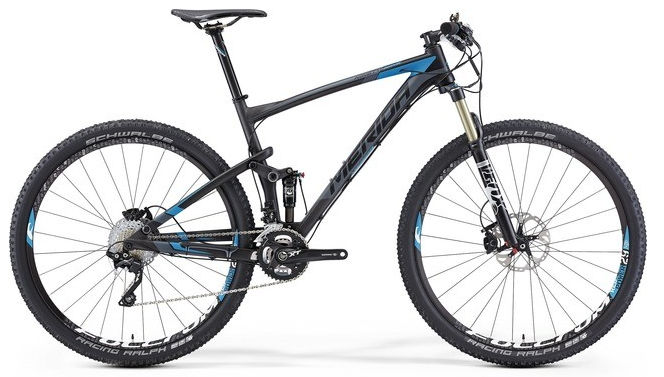

2015 Merida Ninety Nine 9 Carbon geometry
Full frame geometry for the 2015 Merida Ninety Nine 9 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 593 | 402 | 73 | 69 | 95 | 584 | 395 | 745 | 27 | 668 | 450 | 1117 |
| 17 | 600 | 420 | 73 | 69.5 | 100 | 604 | 432 | 768 | 27 | 682 | 450 | 1131 |
| 19 | 610 | 437 | 73 | 69.5 | 110 | 624 | 482 | 809 | 27 | 702 | 450 | 1151 |
| 21 | 621 | 453 | 73 | 70 | 120 | 644 | 530 | 847 | 27 | 717 | 450 | 1166 |
| 23 | 640 | 457 | 73 | 70 | 140 | 654 | 584 | 891 | 27 | 727 | 450 | 1176 |
All measurements in millimetres unless marked (°) for angles.
