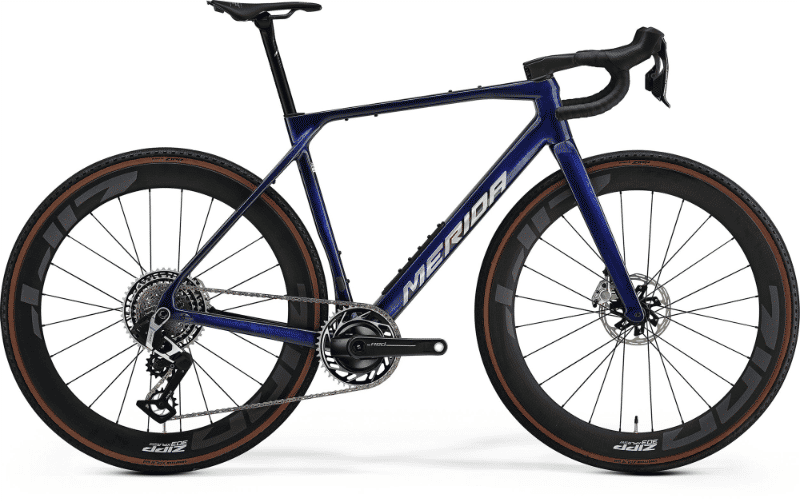

2026 Merida MISSION geometry

Name: 2026 Merida MISSION
Brand: Merida

Full frame geometry for the 2026 Merida MISSION, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XXS	529	370	74	70	103	522	445	741	72	419	997	45
XS	542	377	74	70	117	532	470	764	72	419	1009	45
S	555	384	74	71	126	543	490	781	72	419	1011	45
M	569	391	73.5	72	137	560	510	798	72	419	1013	45
L	584	398	73.5	72	153	571	530	816	72	419	1024	45
XL	610	405	73.5	72.5	178	586	560	844	72	419	1035	45

All measurements in millimetres unless marked (°) for angles.
