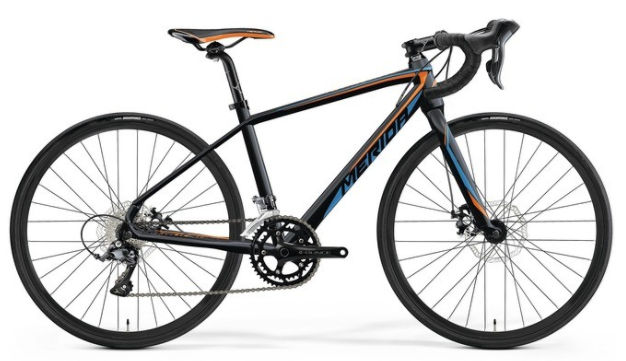

2018 Merida Mission J Road geometry
Full frame geometry for the 2018 Merida Mission J Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 39 | 489 | 349 | 74.5 | 71.5 | 120 | 485 | 390 | 644 | 50 | 551 | 400 | 946 |
All measurements in millimetres unless marked (°) for angles.
