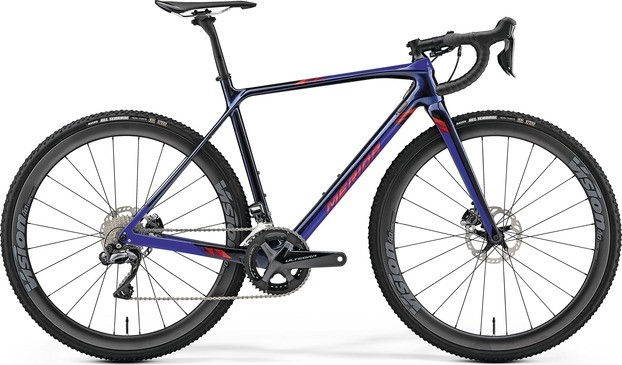

2019 Merida Mission CX CF geometry
Full frame geometry for the 2019 Merida Mission CX CF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 373 | 74 | 70.8 | 90 | 520 | 470 | 787 | 68 | 423 | 999 |
| S | 533 | 382 | 74 | 71 | 109 | 535 | 500 | 815 | 68 | 423 | 1013 |
| M | 553 | 392 | 74 | 71.8 | 125 | 550 | 530 | 842 | 68 | 423 | 1016 |
| L | 572 | 401 | 74 | 72 | 144 | 565 | 560 | 870 | 68 | 423 | 1029 |
| XL | 591 | 411 | 74 | 72.2 | 163 | 580 | 590 | 894 | 68 | 423 | 1042 |
All measurements in millimetres unless marked (°) for angles.
