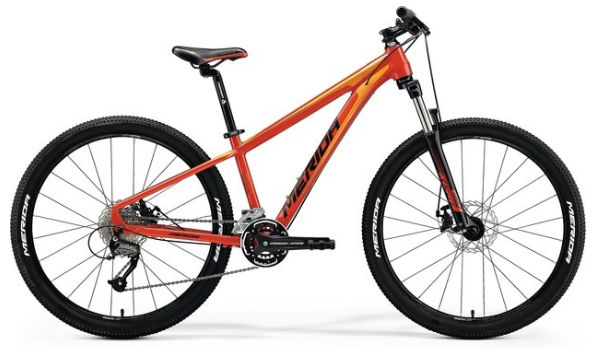

2018 Merida Matts J Champion MKII geometry
Full frame geometry for the 2018 Merida Matts J Champion MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 563 | 378 | 73 | 69 | 100 | 550 | 340 | 636 | 30 | 628 | 430 | 1056 |
All measurements in millimetres unless marked (°) for angles.
