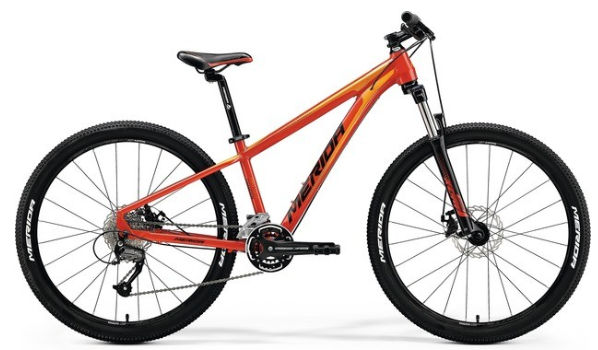

2017 Merida Matts J Champion MKI geometry
Full frame geometry for the 2017 Merida Matts J Champion MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 582 | 383 | 73.5 | 70.5 | 95 | 555 | 343 | 663 | 45 | 619 | 430 | 1045 |
All measurements in millimetres unless marked (°) for angles.
