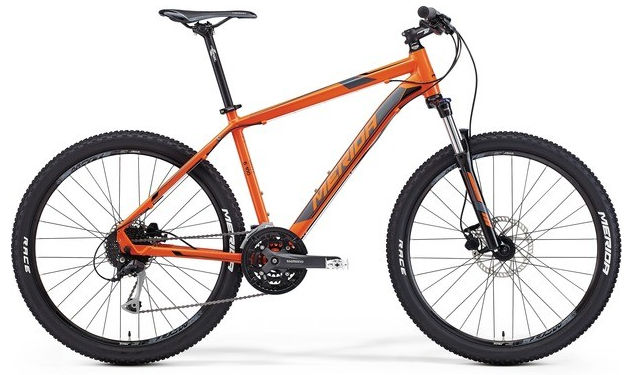

2015 Merida Matts 6 MKI geometry
Full frame geometry for the 2015 Merida Matts 6 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 565 | 394 | 75 | 70.5 | 120 | 550 | 368 | 678 | 40 | 626 | 420 | 1043 |
| 16 | 569 | 401 | 73.5 | 70.5 | 125 | 570 | 407 | 706 | 40 | 630 | 420 | 1047 |
| 18 | 579 | 419 | 73.5 | 70.5 | 135 | 590 | 457 | 746 | 40 | 651 | 420 | 1068 |
| 20 | 588 | 425 | 73 | 70.5 | 145 | 605 | 508 | 784 | 40 | 661 | 420 | 1078 |
| 22 | 598 | 432 | 73 | 70.5 | 155 | 615 | 559 | 823 | 40 | 671 | 420 | 1088 |
| 24 | 612 | 432 | 72.5 | 70.5 | 170 | 625 | 610 | 861 | 40 | 676 | 420 | 1093 |
All measurements in millimetres unless marked (°) for angles.
