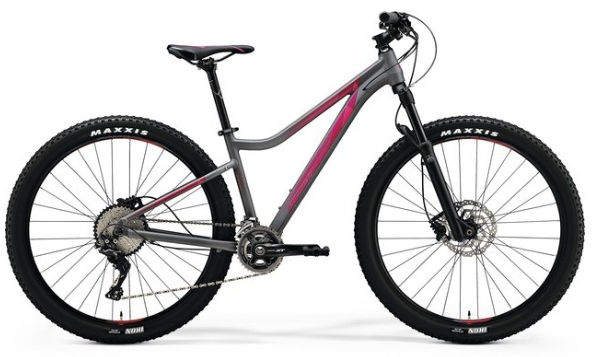

2017 Merida Juliet TFS geometry
Full frame geometry for the 2017 Merida Juliet TFS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 600 | 384 | 74.5 | 69.5 | 95 | 550 | 343 | 603 | 63 | 629 | 430 | 1051 |
| S | 605 | 392 | 74.5 | 69.5 | 100 | 560 | 381 | 635 | 63 | 640 | 430 | 1062 |
| M | 612 | 405 | 74.5 | 70 | 105 | 575 | 432 | 686 | 63 | 650 | 430 | 1072 |
| L | 621 | 413 | 74.5 | 70 | 115 | 585 | 470 | 715 | 63 | 661 | 430 | 1083 |
All measurements in millimetres unless marked (°) for angles.
