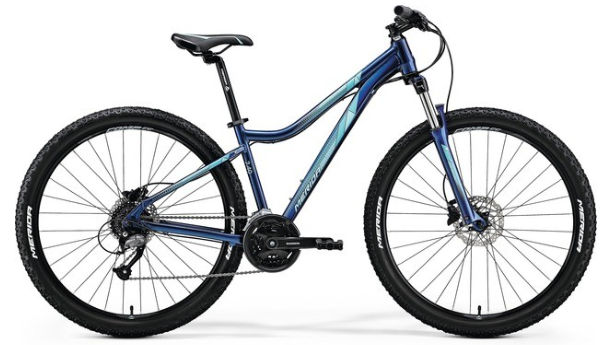

2017 Merida Juliet Speed 7 geometry
Full frame geometry for the 2017 Merida Juliet Speed 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 602 | 372 | 74.5 | 69.5 | 95 | 536 | 343 | 582 | 65 | 617 | 430 | 1039 |
| S | 607 | 380 | 74.5 | 69.5 | 100 | 546 | 381 | 612 | 65 | 628 | 430 | 1050 |
| M | 618 | 392 | 74.5 | 70 | 110 | 561 | 432 | 664 | 65 | 638 | 430 | 1060 |
| L | 628 | 399 | 74.5 | 70 | 120 | 571 | 470 | 694 | 65 | 649 | 430 | 1071 |
All measurements in millimetres unless marked (°) for angles.
