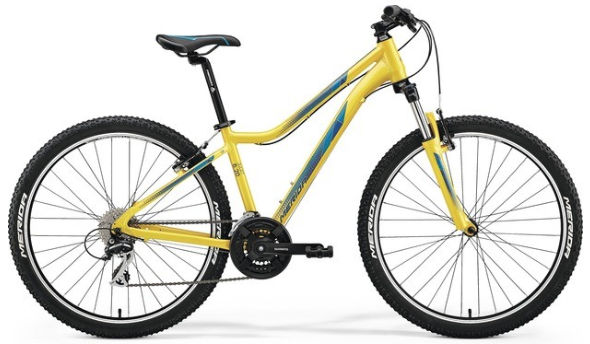

2017 Merida Juliet Speed 6 geometry
Full frame geometry for the 2017 Merida Juliet Speed 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 594 | 364 | 73.5 | 69.5 | 115 | 540 | 343 | 589 | 55 | 609 | 425 | 1028 |
| S | 604 | 371 | 73.5 | 69.5 | 125 | 550 | 381 | 621 | 55 | 619 | 425 | 1038 |
| M | 615 | 372 | 73 | 70 | 135 | 560 | 432 | 674 | 55 | 619 | 425 | 1038 |
All measurements in millimetres unless marked (°) for angles.
