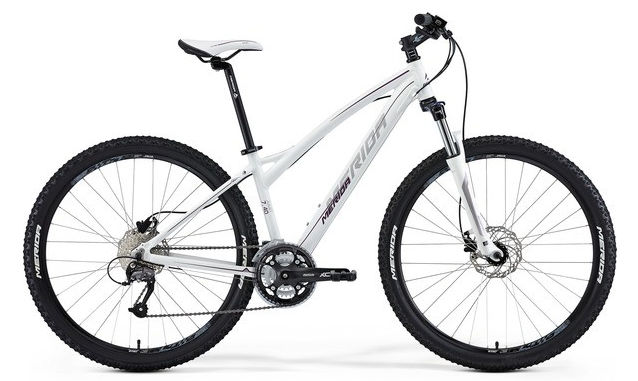

2015 Merida Juliet 7 geometry
Full frame geometry for the 2015 Merida Juliet 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 600 | 384 | 74.5 | 70.5 | 95 | 550 | 343 | 618 | 63 | 622 | 430 | 1044 |
| 15 | 605 | 392 | 74.5 | 70.5 | 100 | 560 | 381 | 653 | 63 | 632 | 430 | 1054 |
| 17 | 612 | 400 | 74 | 71 | 105 | 575 | 432 | 699 | 63 | 636 | 430 | 1058 |
| 18.5 | 621 | 407 | 74 | 71 | 115 | 585 | 470 | 731 | 63 | 647 | 430 | 1069 |
| 20 | 631 | 414 | 74 | 71 | 125 | 595 | 508 | 759 | 63 | 657 | 430 | 1079 |
All measurements in millimetres unless marked (°) for angles.
