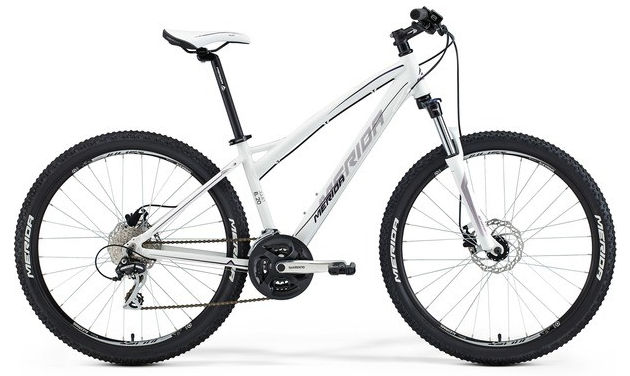

2015 Merida Juliet 6 geometry
Full frame geometry for the 2015 Merida Juliet 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 573 | 371 | 73.5 | 70 | 115 | 540 | 343 | 600 | 55 | 600 | 425 | 1019 |
| 15 | 582 | 378 | 73.5 | 70 | 125 | 550 | 381 | 600 | 55 | 600 | 425 | 1019 |
| 17 | 594 | 379 | 73 | 70.5 | 135 | 560 | 432 | 660 | 55 | 600 | 425 | 1019 |
| 18.5 | 603 | 386 | 73 | 70.5 | 145 | 570 | 470 | 699 | 55 | 602 | 425 | 1021 |
| 20 | 613 | 393 | 73 | 70.5 | 155 | 580 | 508 | 745 | 55 | 608 | 425 | 1027 |
All measurements in millimetres unless marked (°) for angles.
