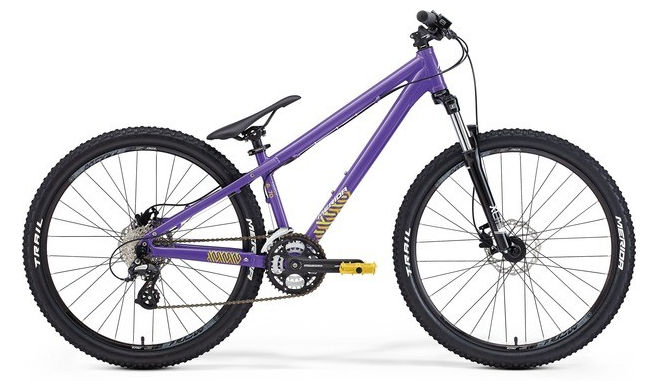

2015 Merida Hardy 6 geometry
Full frame geometry for the 2015 Merida Hardy 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 589 | 419 | 72 | 69.5 | 120 | 610 | 455 | 746 | 40 | 666 | 415 | 1078 |
| M | 589 | 389 | 72 | 69.5 | 120 | 580 | 395 | 695 | 40 | 636 | 415 | 1048 |
| S | 589 | 359 | 72 | 69.5 | 120 | 550 | 335 | 638 | 40 | 606 | 415 | 1018 |
All measurements in millimetres unless marked (°) for angles.
