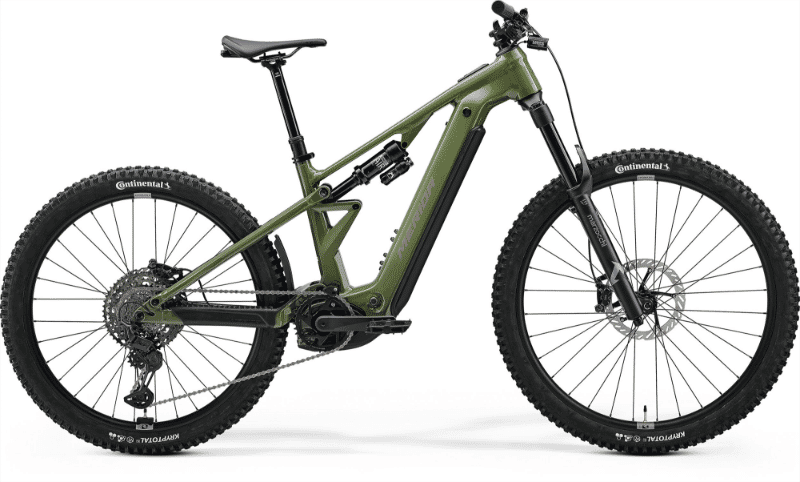

2026 Merida ETMO geometry
Full frame geometry for the 2026 Merida ETMO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Short | 644 | 425 | 78.5 | 65 | 105 | 556 | 380 | 745 | 20 | 446 | 1202 | 44 |
| Long | 653 | 475 | 78.5 | 65 | 115 | 609 | 430 | 751 | 20 | 446 | 1256 | 44 |
| Mid | 653 | 450 | 78.5 | 65 | 115 | 584 | 405 | 748 | 20 | 446 | 1231 | 44 |
| XLong | 662 | 500 | 78.5 | 65 | 125 | 636 | 455 | 754 | 20 | 446 | 1285 | 44 |
All measurements in millimetres unless marked (°) for angles.
