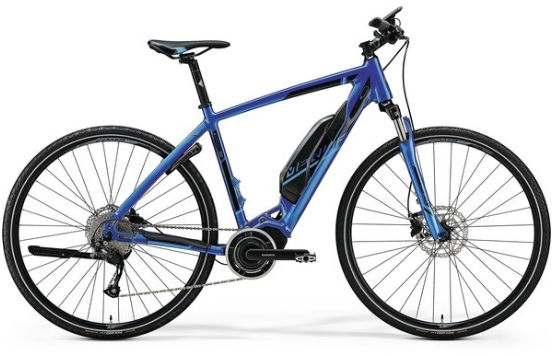

2018 Merida eSpresso geometry
Full frame geometry for the 2018 Merida eSpresso, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/51 | 638 | 390 | 73 | 71 | 140 | 585 | 510 | 1162 | 70 | 638 | 465 | 1094 |
| S/46 | 638 | 383 | 73 | 71 | 140 | 575 | 460 | 1121 | 70 | 628 | 465 | 1084 |
| L/56 | 660 | 403 | 73 | 71.5 | 160 | 605 | 560 | 1206 | 70 | 653 | 465 | 1109 |
| XL/61 | 700 | 411 | 73 | 72 | 200 | 625 | 610 | 1252 | 70 | 668 | 465 | 1124 |
All measurements in millimetres unless marked (°) for angles.
