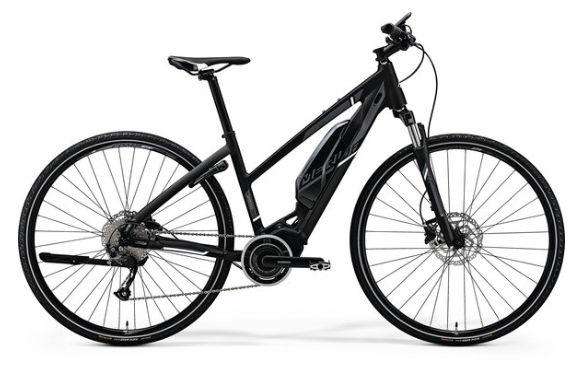

2018 Merida eSpresso L geometry
Full frame geometry for the 2018 Merida eSpresso L, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/46 | 638 | 383 | 73 | 71 | 140 | 575 | 430 | 986 | 70 | 628 | 465 | 1084 |
| M/50 | 657 | 390 | 73 | 71 | 160 | 585 | 470 | 1006 | 70 | 639 | 465 | 1095 |
| L/54 | 679 | 403 | 73 | 71.5 | 180 | 605 | 510 | 1028 | 70 | 653 | 465 | 1109 |
All measurements in millimetres unless marked (°) for angles.
