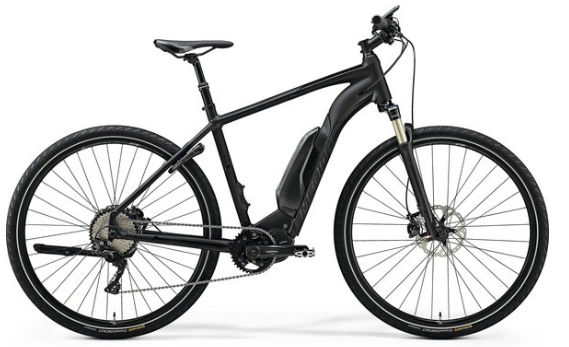

2018 Merida eSpresso E8000 geometry
Full frame geometry for the 2018 Merida eSpresso E8000, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/43 | 627 | 385 | 74 | 70.5 | 130 | 565 | 430 | 723 | 70 | 635 | 475 | 1101 |
| S/47 | 638 | 391 | 73.5 | 71 | 140 | 580 | 470 | 757 | 70 | 639 | 475 | 1105 |
| M/51 | 653 | 397 | 73.5 | 71 | 155 | 590 | 510 | 792 | 70 | 650 | 475 | 1116 |
| L/55 | 674 | 404 | 73 | 71.5 | 175 | 610 | 550 | 827 | 70 | 658 | 475 | 1124 |
| XL/59 | 702 | 415 | 73 | 71.5 | 205 | 630 | 590 | 864 | 70 | 679 | 475 | 1145 |
All measurements in millimetres unless marked (°) for angles.
