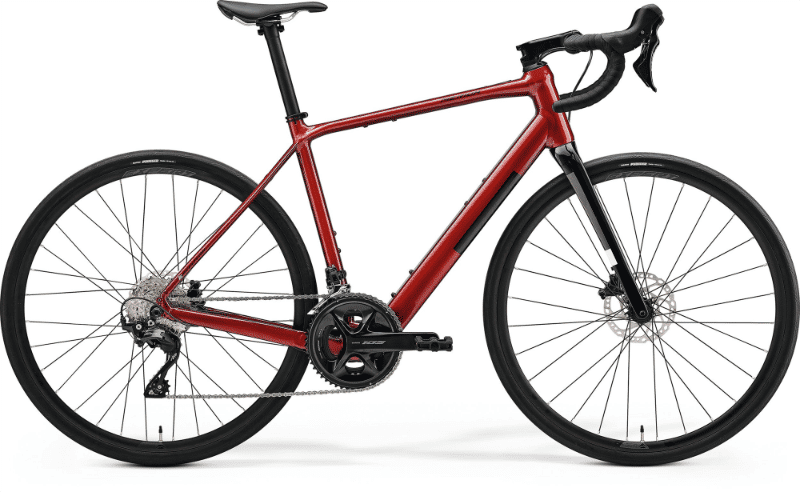

2026 Merida eScultura 400 geometry
Full frame geometry for the 2026 Merida eScultura 400, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 565 | 374 | 75 | 69.5 | 145 | 525 | 470 | 748 | 70 | 431 | 1032 |
| S | 581 | 384 | 75 | 70 | 160 | 540 | 490 | 767 | 70 | 431 | 1044 |
| M | 597 | 395 | 75 | 70.5 | 175 | 555 | 510 | 785 | 70 | 431 | 1055 |
| L | 613 | 406 | 75 | 71 | 190 | 570 | 530 | 804 | 70 | 431 | 1066 |
| XL | 629 | 416 | 75 | 71.5 | 205 | 585 | 560 | 830 | 70 | 431 | 1076 |
All measurements in millimetres unless marked (°) for angles.
