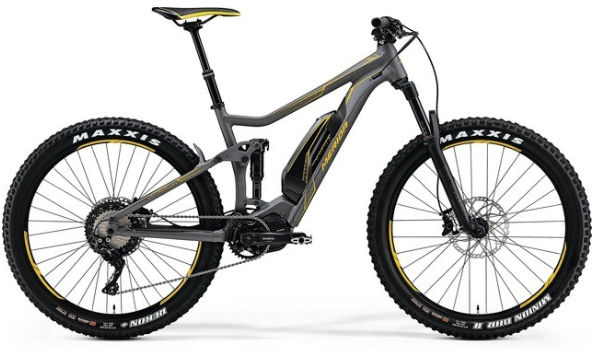

2018 Merida eOne Twenty geometry
Full frame geometry for the 2018 Merida eOne Twenty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 420 | 75 | 67.5 | 110 | 583 | 400 | 698 | 28 | 717 | 440 | 1155 |
| M | 619 | 435 | 75 | 67.5 | 120 | 601 | 440 | 730 | 28 | 736 | 440 | 1174 |
| L | 628 | 455 | 75 | 67.5 | 130 | 623 | 490 | 751 | 28 | 760 | 440 | 1198 |
| XL | 637 | 475 | 75 | 67.5 | 140 | 646 | 540 | 783 | 28 | 783 | 440 | 1221 |
All measurements in millimetres unless marked (°) for angles.
