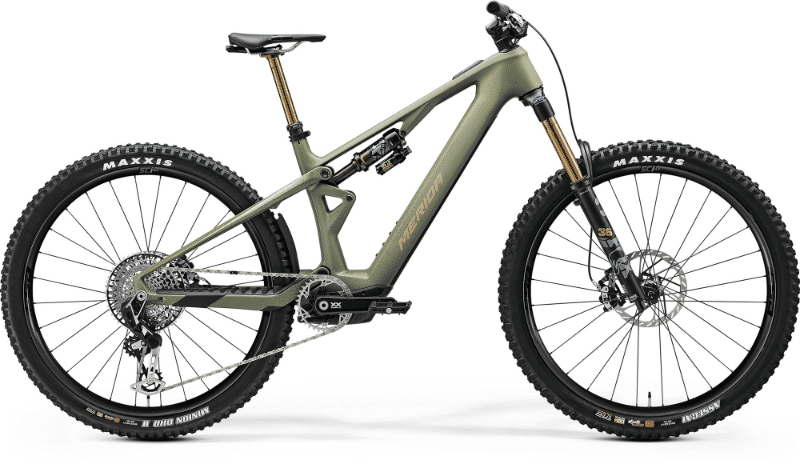

2026 Merida eONE-SIXTY SL geometry
Full frame geometry for the 2026 Merida eONE-SIXTY SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XShort | 611 | 420 | 78.5 | 64 | 100 | 543 | 400 | 753 | 27.5 | 450 | 1202 | 44 |
| Short | 616 | 443 | 78.5 | 64 | 105 | 567 | 410 | 757 | 27.5 | 450 | 1228 | 44 |
| Mid | 620 | 466 | 78.5 | 64 | 110 | 591 | 425 | 761 | 27.5 | 450 | 1253 | 44 |
| Long | 625 | 489 | 78.5 | 64 | 115 | 616 | 445 | 768 | 27.5 | 450 | 1278 | 44 |
| XLong | 629 | 512 | 78.5 | 64 | 120 | 640 | 465 | 774 | 27.5 | 450 | 1303 | 44 |
All measurements in millimetres unless marked (°) for angles.
