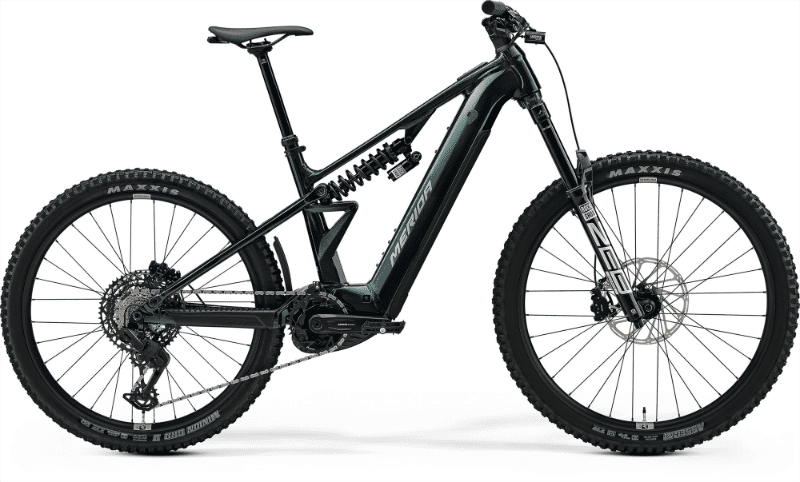

2026 Merida eONE-EIGHTY FR geometry
Full frame geometry for the 2026 Merida eONE-EIGHTY FR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Short | 657 | 435 | 78.5 | 64.5 | 115 | 577 | 410 | 12 | 435 | 1218 |
| Mid | 661 | 460 | 78.5 | 64.5 | 120 | 604 | 425 | 12 | 435 | 1245 |
| Long | 666 | 485 | 78.5 | 64.5 | 125 | 630 | 445 | 12 | 435 | 1272 |
| XLong | 670 | 505 | 78.5 | 64.5 | 130 | 652 | 465 | 12 | 435 | 1294 |
All measurements in millimetres unless marked (°) for angles.
