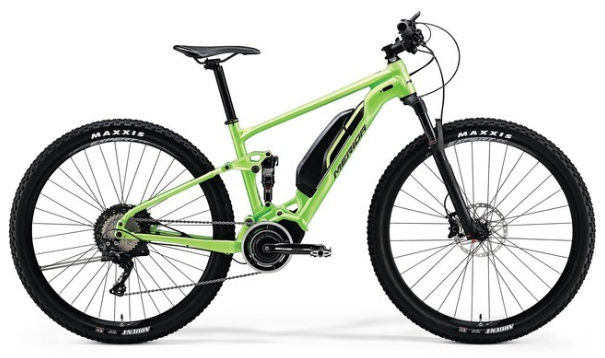

2017 Merida eNinety-Nine geometry
Full frame geometry for the 2017 Merida eNinety-Nine, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 399 | 74 | 68 | 110 | 570 | 390 | 720 | 40 | 680 | 480 | 1157 |
| M | 601 | 413 | 74 | 68 | 115 | 585 | 430 | 755 | 40 | 696 | 480 | 1173 |
| L | 611 | 425 | 74 | 68 | 125 | 600 | 470 | 790 | 40 | 712 | 480 | 1189 |
| XL | 620 | 437 | 74 | 68 | 135 | 615 | 510 | 823 | 40 | 728 | 480 | 1205 |
All measurements in millimetres unless marked (°) for angles.
