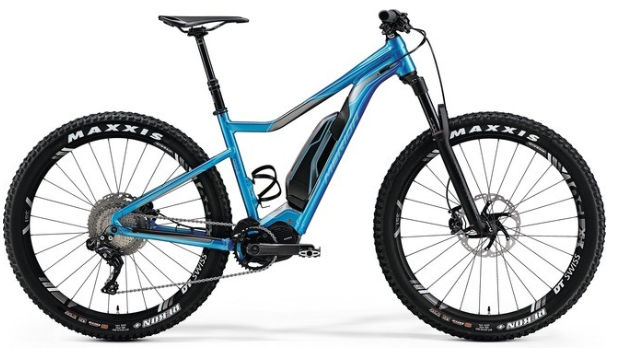

2017 Merida eBig.Trail geometry
Full frame geometry for the 2017 Merida eBig.Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 637 | 405 | 74.5 | 67.5 | 105 | 582 | 400 | 650 | 60 | 702 | 434 | 1130 |
| M | 647 | 425 | 74.5 | 67.5 | 115 | 604 | 440 | 682 | 60 | 726 | 434 | 1154 |
| L | 656 | 445 | 74.5 | 67.5 | 125 | 627 | 490 | 705 | 60 | 749 | 434 | 1177 |
| XL | 665 | 465 | 74.5 | 67.5 | 135 | 649 | 540 | 736 | 60 | 773 | 434 | 1201 |
All measurements in millimetres unless marked (°) for angles.
