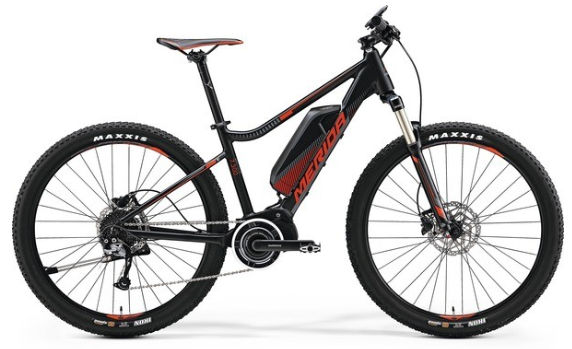

2017 Merida eBig.Tour MKI geometry
Full frame geometry for the 2017 Merida eBig.Tour MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 620 | 372 | 72.5 | 69 | 135 | 560 | 410 | 683 | 50 | 636 | 450 | 1081 |
| M (27.5) | 625 | 389 | 72.5 | 69 | 145 | 580 | 440 | 701 | 50 | 657 | 450 | 1102 |
| M (29) | 654 | 374 | 73 | 69.5 | 135 | 580 | 440 | 703 | 70 | 651 | 470 | 1112 |
| L (29) | 664 | 397 | 73 | 69.5 | 145 | 600 | 480 | 734 | 70 | 672 | 470 | 1133 |
| XL (29) | 673 | 414 | 73 | 69.5 | 155 | 620 | 520 | 765 | 70 | 693 | 470 | 1154 |
All measurements in millimetres unless marked (°) for angles.
