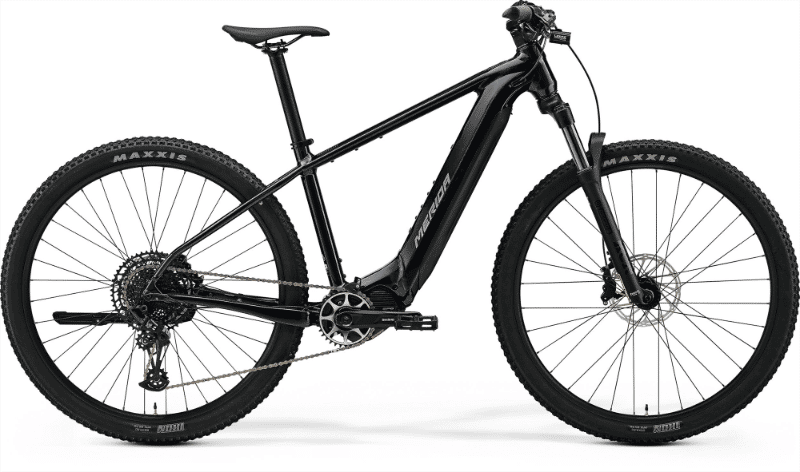

2026 Merida eBIG.NINE geometry
Full frame geometry for the 2026 Merida eBIG.NINE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 636 | 411 | 74.5 | 67.5 | 115 | 588 | 380 | 719 | 62.5 | 465 | 1165 |
| M | 640 | 427 | 74.5 | 67.5 | 120 | 605 | 430 | 750 | 62.5 | 465 | 1183 |
| L | 650 | 445 | 74.5 | 67.5 | 130 | 625 | 480 | 794 | 62.5 | 465 | 1204 |
| XL | 659 | 462 | 74.5 | 67.5 | 140 | 645 | 530 | 835 | 62.5 | 465 | 1225 |
All measurements in millimetres unless marked (°) for angles.
