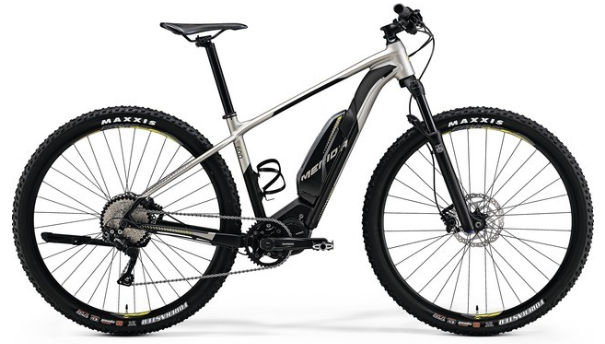

2018 Merida eBig.Nine/Seven geometry
Full frame geometry for the 2018 Merida eBig.Nine/Seven, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 579 | 399 | 73.5 | 68 | 125 | 570 | 380 | 710 | 27 | 667 | 438 | 1104 |
| M (27.5) | 588 | 416 | 73.5 | 68 | 135 | 590 | 430 | 749 | 27 | 688 | 438 | 1125 |
| M (29) | 634 | 402 | 73.5 | 69.5 | 115 | 590 | 430 | 733 | 65 | 673 | 458 | 1123 |
| L (29) | 643 | 420 | 73.5 | 69.5 | 125 | 610 | 480 | 777 | 65 | 693 | 458 | 1143 |
| XL (29) | 652 | 437 | 73.5 | 69.5 | 135 | 630 | 530 | 819 | 65 | 714 | 458 | 1164 |
All measurements in millimetres unless marked (°) for angles.
