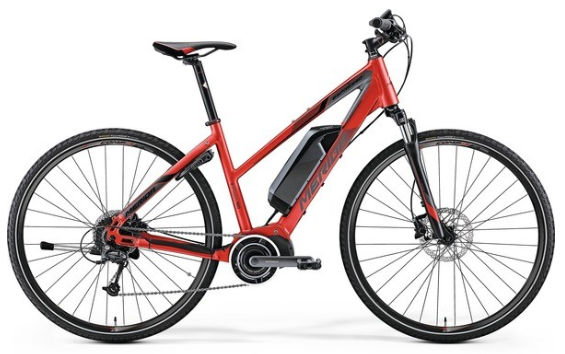

2017 Merida E-Spresso Tour geometry
Full frame geometry for the 2017 Merida E-Spresso Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 627 | 383 | 73 | 71 | 140 | 575 | 430 | 647 | 70 | 623 | 465 | 1079 |
| 50 | 646 | 387 | 73 | 71 | 160 | 585 | 470 | 639 | 70 | 634 | 465 | 1090 |
| 54 | 667 | 401 | 73 | 71.5 | 180 | 605 | 510 | 637 | 70 | 649 | 465 | 1105 |
All measurements in millimetres unless marked (°) for angles.
