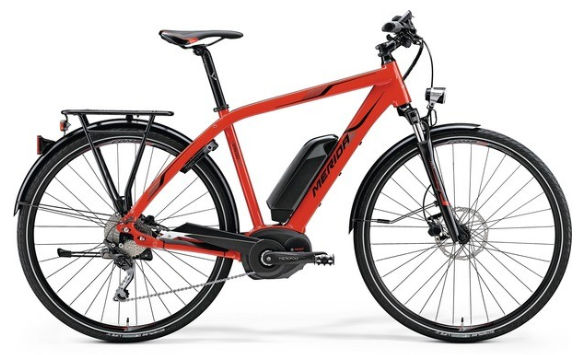

2017 Merida E-Spresso Sport geometry
Full frame geometry for the 2017 Merida E-Spresso Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 627 | 383 | 73 | 71 | 140 | 575 | 460 | 755 | 70 | 626 | 465 | 1082 |
| 51 | 627 | 393 | 73 | 71 | 140 | 585 | 510 | 799 | 70 | 636 | 465 | 1092 |
| 56 | 648 | 407 | 73 | 71.5 | 160 | 605 | 560 | 843 | 70 | 651 | 465 | 1107 |
| 61 | 689 | 414 | 73 | 72 | 200 | 625 | 610 | 890 | 70 | 667 | 465 | 1123 |
All measurements in millimetres unless marked (°) for angles.
