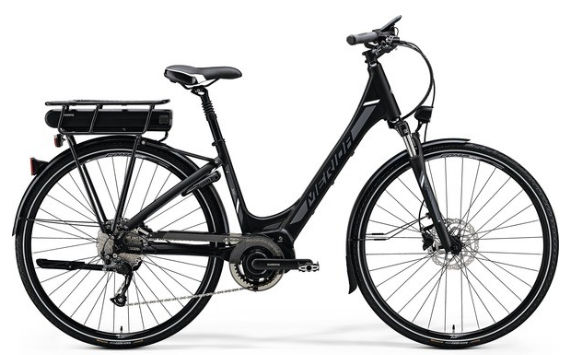

2018 Merida E-Spresso City MKII geometry
Full frame geometry for the 2018 Merida E-Spresso City MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/46 | 653 | 395 | 73 | 69.5 | 180 | 595 | 430 | 449 | 65 | 667 | 465 | 1124 |
| M/51 | 654 | 405 | 73 | 69.5 | 180 | 605 | 480 | 449 | 65 | 676 | 465 | 1133 |
| L/56 | 672 | 420 | 73 | 69.5 | 200 | 625 | 530 | 449 | 65 | 698 | 465 | 1155 |
| XL/61 | 691 | 434 | 73 | 69.5 | 220 | 645 | 580 | 449 | 65 | 719 | 465 | 1176 |
All measurements in millimetres unless marked (°) for angles.
