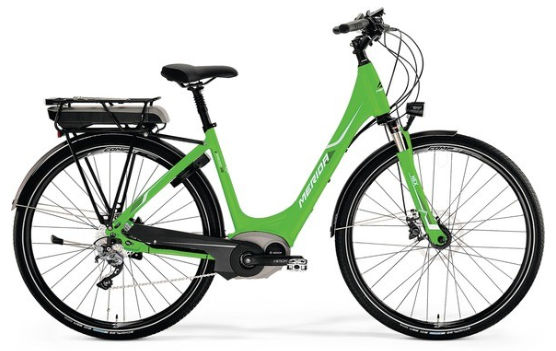

2017 Merida E-Spresso City MKI geometry
Full frame geometry for the 2017 Merida E-Spresso City MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 614 | 407 | 73 | 70.5 | 180 | 595 | 430 | 425 | 45 | 658 | 440 | 1094 |
| 51 | 663 | 402 | 73 | 70.5 | 180 | 605 | 480 | 428 | 70 | 661 | 465 | 1117 |
| 56 | 682 | 417 | 73 | 70.5 | 200 | 625 | 530 | 429 | 70 | 685 | 465 | 1141 |
All measurements in millimetres unless marked (°) for angles.
