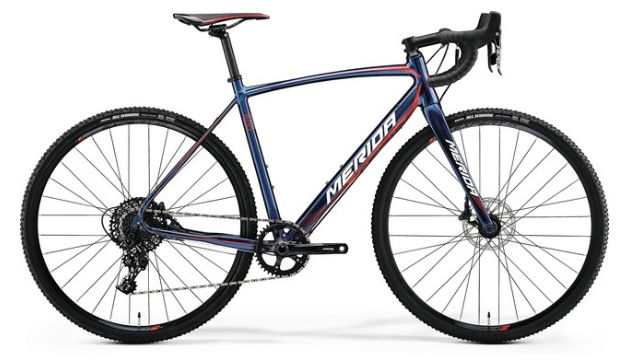

2016 Merida Cyclo Cross Lite geometry
Full frame geometry for the 2016 Merida Cyclo Cross Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 524 | 370 | 75 | 70 | 110 | 510 | 470 | 740 | 65 | 589 | 425 | 1005 |
| 50 | 545 | 379 | 75 | 70.5 | 130 | 525 | 500 | 764 | 65 | 601 | 425 | 1017 |
| 52 | 561 | 379 | 74 | 71 | 145 | 540 | 520 | 781 | 65 | 602 | 425 | 1018 |
| 54 | 579 | 389 | 74 | 72 | 160 | 555 | 540 | 804 | 65 | 606 | 425 | 1023 |
| 56 | 593 | 389 | 73 | 72 | 175 | 570 | 560 | 817 | 65 | 611 | 425 | 1028 |
| 59 | 612 | 403 | 73 | 72 | 195 | 590 | 590 | 847 | 65 | 631 | 425 | 1048 |
All measurements in millimetres unless marked (°) for angles.
