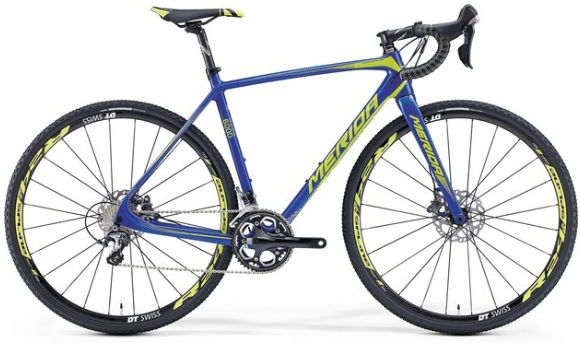

2016 Merida Cyclo Cross CF3 MKI geometry
Full frame geometry for the 2016 Merida Cyclo Cross CF3 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 521 | 370 | 74 | 71 | 100 | 520 | 470 | 790 | 68 | 579 | 423 | 992 |
| 50 | 535 | 370 | 73.5 | 72 | 111 | 530 | 500 | 815 | 68 | 575 | 423 | 988 |
| 53 | 554 | 379 | 73.5 | 72 | 131 | 545 | 530 | 842 | 68 | 589 | 423 | 1003 |
| 56 | 574 | 387 | 73.5 | 72.5 | 150 | 558 | 560 | 870 | 68 | 598 | 423 | 1012 |
| 59 | 594 | 396 | 73.5 | 72.5 | 171 | 573 | 590 | 895 | 68 | 614 | 423 | 1028 |
All measurements in millimetres unless marked (°) for angles.
