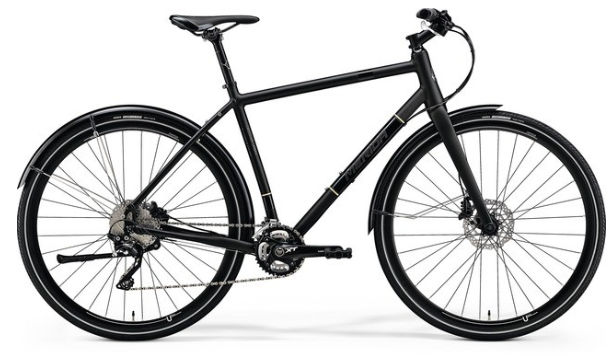

2018 Merida Crossway Urban TFS geometry
Full frame geometry for the 2018 Merida Crossway Urban TFS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/41 | 566 | 403 | 74 | 71 | 145 | 565 | 410 | 697 | 70 | 625 | 450 | 1066 |
| XS/44 | 571 | 401 | 74 | 71 | 150 | 565 | 440 | 721 | 70 | 625 | 450 | 1066 |
| S/46 | 577 | 404 | 73.5 | 71.5 | 155 | 575 | 460 | 737 | 70 | 625 | 450 | 1066 |
| SM/48 | 582 | 413 | 73.5 | 71.5 | 160 | 585 | 480 | 753 | 70 | 635 | 450 | 1076 |
| ML/52 | 589 | 421 | 73.5 | 72 | 165 | 595 | 520 | 783 | 70 | 640 | 450 | 1081 |
| L/55 | 603 | 421 | 73 | 72 | 180 | 605 | 550 | 807 | 70 | 645 | 450 | 1086 |
| XL/58 | 622 | 430 | 73 | 72 | 200 | 620 | 580 | 833 | 70 | 660 | 450 | 1101 |
| XXL/61 | 648 | 431 | 72.5 | 72.5 | 225 | 635 | 610 | 860 | 70 | 664 | 450 | 1105 |
All measurements in millimetres unless marked (°) for angles.
