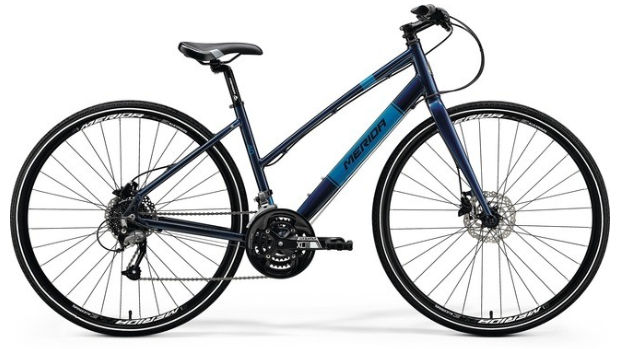

2018 Merida Crossway Urban Speed Lady geometry
Full frame geometry for the 2018 Merida Crossway Urban Speed Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/42 | 580 | 403 | 73.5 | 71 | 160 | 575 | 390 | 588 | 70 | 630 | 450 | 1071 |
| S/46 | 585 | 402 | 73.5 | 71 | 165 | 575 | 430 | 588 | 70 | 631 | 450 | 1072 |
| M/50 | 590 | 410 | 73.5 | 71 | 170 | 585 | 470 | 589 | 70 | 640 | 450 | 1081 |
| L/54 | 596 | 418 | 73 | 71.5 | 175 | 600 | 510 | 588 | 70 | 645 | 450 | 1086 |
All measurements in millimetres unless marked (°) for angles.
