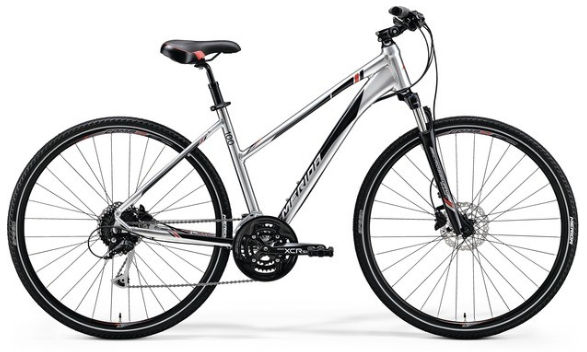

2018 Merida Crossway TFS Lady MKII geometry
Full frame geometry for the 2018 Merida Crossway TFS Lady MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/43 | 611 | 390 | 74 | 70.5 | 130 | 565 | 430 | 650 | 70 | 634 | 460 | 1085 |
| XXS/39 | 611 | 385 | 74 | 70.5 | 130 | 560 | 390 | 650 | 70 | 629 | 460 | 1080 |
| S/47 | 622 | 396 | 73.5 | 71 | 140 | 580 | 470 | 650 | 70 | 638 | 460 | 1089 |
| M/51 | 637 | 402 | 73.5 | 71 | 155 | 590 | 510 | 651 | 70 | 649 | 460 | 1100 |
| L/55 | 658 | 409 | 73 | 71.5 | 175 | 610 | 550 | 651 | 70 | 658 | 460 | 1109 |
All measurements in millimetres unless marked (°) for angles.
