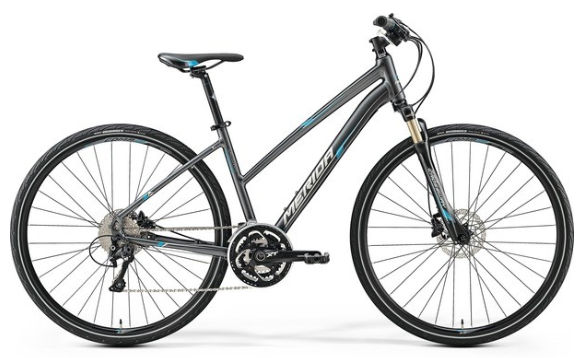

2017 Merida Crossway TFS Lady MKI geometry
Full frame geometry for the 2017 Merida Crossway TFS Lady MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 607 | 397 | 73.5 | 71 | 135 | 575 | 390 | 589 | 70 | 636 | 450 | 1077 |
| 46 | 612 | 394 | 73.5 | 71 | 140 | 575 | 430 | 589 | 70 | 637 | 450 | 1078 |
| 50 | 612 | 404 | 73.5 | 71 | 140 | 585 | 470 | 590 | 70 | 647 | 450 | 1088 |
| 54 | 642 | 404 | 73 | 71.5 | 170 | 600 | 510 | 588 | 70 | 651 | 450 | 1092 |
| 57 | 644 | 418 | 73 | 72 | 170 | 615 | 540 | 590 | 70 | 661 | 450 | 1102 |
All measurements in millimetres unless marked (°) for angles.
