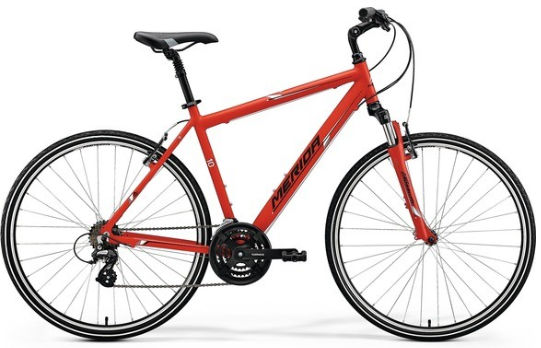

2018 Merida Crossway DT geometry
Full frame geometry for the 2018 Merida Crossway DT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/44 | 597 | 394 | 74 | 71 | 125 | 565 | 440 | 730 | 70 | 632 | 450 | 1073 |
| XXS/41 | 597 | 394 | 74 | 71 | 125 | 565 | 410 | 708 | 70 | 632 | 450 | 1073 |
| S/46 | 599 | 397 | 73.5 | 71.5 | 125 | 575 | 460 | 747 | 70 | 631 | 450 | 1072 |
| SM/48 | 609 | 405 | 73.5 | 71.5 | 135 | 585 | 480 | 762 | 70 | 641 | 450 | 1082 |
| ML/52 | 611 | 414 | 73.5 | 72 | 135 | 595 | 520 | 793 | 70 | 646 | 450 | 1087 |
| L/55 | 620 | 415 | 73 | 72 | 145 | 605 | 550 | 817 | 70 | 650 | 450 | 1091 |
| XL/58 | 644 | 423 | 73 | 72 | 170 | 620 | 580 | 844 | 70 | 666 | 450 | 1107 |
| XXL/61 | 675 | 422 | 72.5 | 72.5 | 200 | 635 | 610 | 875 | 70 | 669 | 450 | 1110 |
All measurements in millimetres unless marked (°) for angles.
