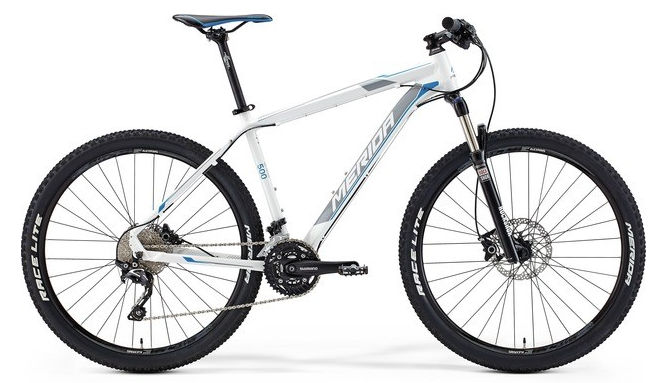

2015 Merida Big Seven geometry
Full frame geometry for the 2015 Merida Big Seven, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 582 | 383 | 73.5 | 70.5 | 95 | 555 | 343 | 643 | 45 | 619 | 430 | 1045 |
| 15 | 587 | 391 | 73.5 | 70.5 | 100 | 565 | 381 | 691 | 45 | 629 | 430 | 1055 |
| 17 | 594 | 403 | 73 | 71 | 105 | 585 | 432 | 734 | 45 | 639 | 430 | 1065 |
| 18.5 | 603 | 411 | 73 | 71 | 115 | 595 | 470 | 766 | 45 | 649 | 430 | 1075 |
| 20 | 613 | 418 | 73 | 71 | 125 | 605 | 508 | 797 | 45 | 659 | 430 | 1085 |
| 21.5 | 624 | 418 | 72.5 | 71.5 | 135 | 615 | 546 | 826 | 45 | 658 | 430 | 1084 |
| 23 | 634 | 425 | 72.5 | 71.5 | 145 | 625 | 584 | 856 | 45 | 668 | 430 | 1094 |
All measurements in millimetres unless marked (°) for angles.
