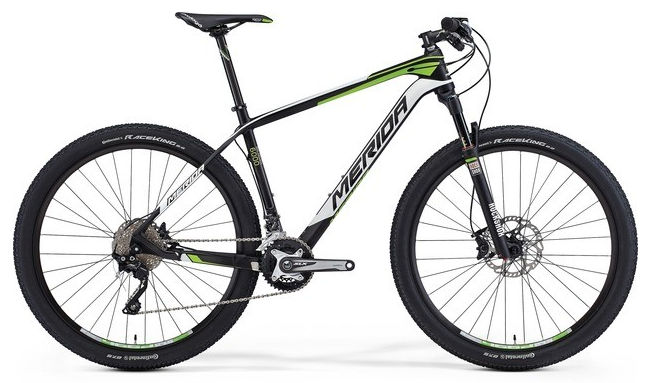

2015 Merida Big Seven Carbon geometry
Full frame geometry for the 2015 Merida Big Seven Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 588 | 391 | 73.5 | 70.5 | 100 | 565 | 381 | 738 | 45 | 632 | 425 | 1053 |
| 17 | 597 | 403 | 73 | 71 | 107 | 585 | 432 | 781 | 45 | 640 | 425 | 1061 |
| 18.5 | 606 | 410 | 73 | 71 | 117 | 595 | 470 | 808 | 45 | 652 | 425 | 1073 |
| 20 | 614 | 417 | 73 | 71 | 125 | 605 | 508 | 850 | 45 | 662 | 425 | 1083 |
| 21.5 | 626 | 418 | 73 | 71.5 | 125 | 615 | 546 | 880 | 45 | 660 | 425 | 1081 |
All measurements in millimetres unless marked (°) for angles.
